TLDR: Some basic expoloritory analysis with 30 Rock Data.
Introduction
In this post we will explore some 30 Rock data from. The data includes imdb ratings, viewership numbers, and writers of the episodes. We will take a step by step approach to creating plots for ratings and viewership over time.
Libraries
For this analysis we will be using the below Python libraries.
- Pandas for working with data frames
- matplotlib.pyplot for creating plots and adjusting features
- matplotlib.mdates for working with date formatting
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.dates as mdates
Create Data Frames
The dataset from kaggle came in two csv files. The initial step is to read the csv files into pandas dataframes using the .read_csv method. It is important to know what type of data the dataframes contain. Using pandas’ .dtypes property shows the column name and what data type the values are. Comparing the results between the two data frames, it is clear that there is some overlap in the data. Both data frames have columns that hold values for season, episodes, title, and airdates. This information is important when the data frames are merged together. Another interesting thing that is shown by viewing the data types is that the column original_air_data is showing as on object; it might be more helpful for it to be a datetime data type.
Read the csv into a data frame
episode = pd.read_csv('30_rock_episodes.csv')
imdb = pd.read_csv('30_rock_imdb.csv')
Look at the datatypes of the dataframes
episode.dtypes
season int64
episode_num_in_season int64
episode_num_overall int64
title object
directed_by object
written_by object
original_air_date object
prod_code int64
us_viewers float64
dtype: object
imdb.dtypes
season int64
episode_num int64
title object
original_air_date object
imdb_rating float64
total_votes int64
desc object
dtype: object
Before the data frames can be merged there are a couple of things that need to be done. First is to remove some of the columns from the imdb data frame, leaving only three columns, season, episode_num, imdb_rating, desc (the description is not needed, but kept in case I choose to annotate a point on the plot).
imdb_filter = imdb[['season', 'episode_num', 'imdb_rating', 'desc']]
The second thing before merging is to rename one of the columns in the episode data frame. episode contains to different values for episode numbers, episode_num_in_season and episode_num_overall. The imdb data frame only has the empisode number as it relates to the season. Since episode number is one of the columns that the data frames will eventually be merged on, it makes sense to have the column names match. This is achieved with the .rename() method.
episode = episode.rename(columns={'episode_num_in_season': 'episode_num'})
With the column renamed, it is time to merge the them together and double check the results to make sure it was what is expected. One thing to take note of is that while there are columns that would match, season and episode_num, the merge would not work properly with one column alone. So for the .merge() method a list of two columns is passed.
df = pd.merge(episode, imdb_filter, on= ['season', 'episode_num'])
df.dtypes
season int64
episode_num int64
episode_num_overall int64
title object
directed_by object
written_by object
original_air_date object
prod_code int64
us_viewers float64
imdb_rating float64
desc object
dtype: object
A Bit of Exploring
Now that there is one data frame that is being used I do a bit of exploring. Fore example checking to see if there are any missing values (.count(), .isna()). Additionally there is a check to see the maximum and minimum imdb ratings.
na_df = df[df.isna() == True]
na_df.count()
season 0
episode_num 0
episode_num_overall 0
title 0
directed_by 0
written_by 0
original_air_date 0
prod_code 0
us_viewers 0
imdb_rating 0
desc 0
dtype: int64
df.count()
season 138
episode_num 138
episode_num_overall 138
title 138
directed_by 138
written_by 138
original_air_date 138
prod_code 138
us_viewers 138
imdb_rating 138
desc 138
dtype: int64
min_rating = df.imdb_rating.min()
max_rating = df.imdb_rating.max()
print(f'Min episode rating: {min_rating}\nMax episode rating: {max_rating}')
Min episode rating: 7.3
Max episode rating: 9.0
Getting Ready to Plot - Ratings Scatter Plot Over Time
As noted earlier in the post, the original_air_date column has a data type of object. In order to plot correctly (x-axis - over time) it is needed to convert to the datetime data type. Pandas .to_datetime() method is used to achieve this
Note: Pandas offers different syntax when regerencing columns in a data frame. Below the dot notation is used, df.column_name. Much of the work shown in this post uses bracket notation, df['column_name']. There is no reason for the switching other than trying it out as a learner. One should stay consistent within projects however.
df.original_air_date = pd.to_datetime(df.original_air_date)
Next the order of the rows in the data frame are important if the plot is to be correct. Using the .sort_values() method from Pandas, the data frame is sorted based on the original_air_date, now with the values being datetime type.
df = df.sort_values('original_air_date')
With the data sorted, let’s take a look if there are any duplicate rows in the data frame. This is achieved with the duplicated() method. If there are any duplicates they can be removed with the drop_duplicates() method.
# Check for duplicates
duplicates_df = df[df.duplicated()]
duplicates_df.shape
(1, 11)
It would appear that there is a duplicate! Time to remove that.
df = df.drop_duplicates()
df.shape
(137, 11)
As shown above, the data frame now has 137 rows. Previoulsy (when checking the .dtypes property) there were 138. The data frame is now ready for plotting.

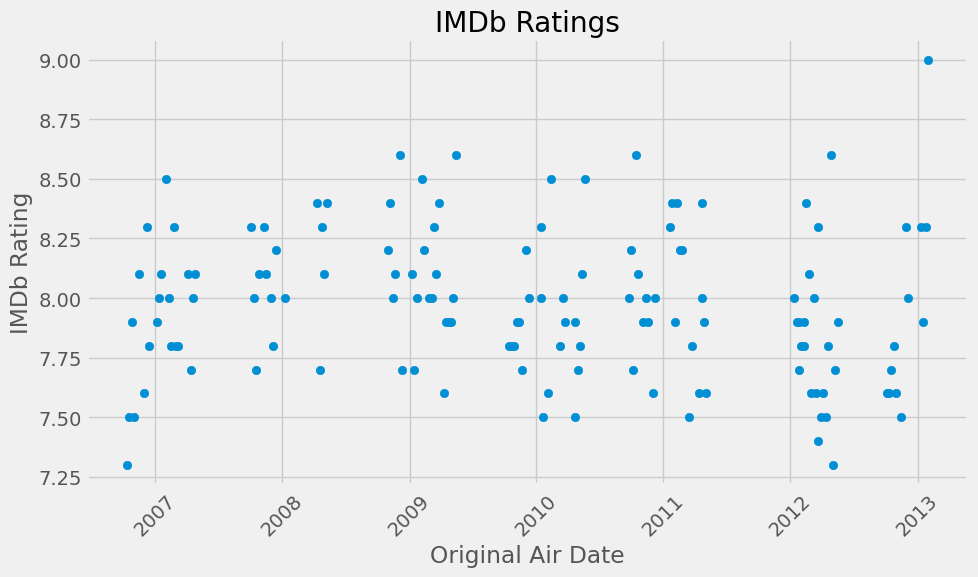

Scatter Plot - IMDb Ratings Over Time
The first plot will be as simple as possible. Using the built in styles of Matplotlibs ‘fivethirtyeight’ style. The data shown on the x-axis is the orginal air date, and the y-axis is the IMDb rating. The plot is then given some labels and adjustments to those labels.
plt.style.use('fivethirtyeight')
plt.figure(figsize=(10, 6))
plt.scatter(df['original_air_date'], df['imdb_rating'])
plt.xlabel('Original Air Date')
plt.ylabel('IMDb Rating')
plt.title('IMDb Ratings')
plt.xticks(rotation=45)
plt.tight_layout()
The above plot looks pretty good with the default styling for ‘fivethirtyeight’. It shows that the episodes have a wide range of IMDb ratings with the highest rating looking to be the last episode. The lowest rating seams to be either the first season or the sixth season. Let’s take a look at some more details about those episodes.
A data mask is used to filter the desired episodes into a new data frame. Then iterate over the data frame to print out the values. This reveals that the two episodes mentioned earlier as the possible lowest, were in fact rated both at 7.3. The highest rated was the final episode.
# filter the highest and lowest rated episodes
# Create a data mask & min/max rating data frame
high_low_mask = (df['imdb_rating'] == max_rating) | (df['imdb_rating'] == min_rating)
high_low_df = df[high_low_mask]
# Print episode values
for episode in high_low_df.itertuples():
f_string = f'Season: {episode.season}, Episode: {episode.episode_num}, IMDb Ratine: {episode.imdb_rating}'
print(f_string)
Season: 1, Episode: 1, IMDb Ratine: 7.3
Season: 6, Episode: 20, IMDb Ratine: 7.3
Season: 7, Episode: 12, IMDb Ratine: 9.0
Viewership Over Time

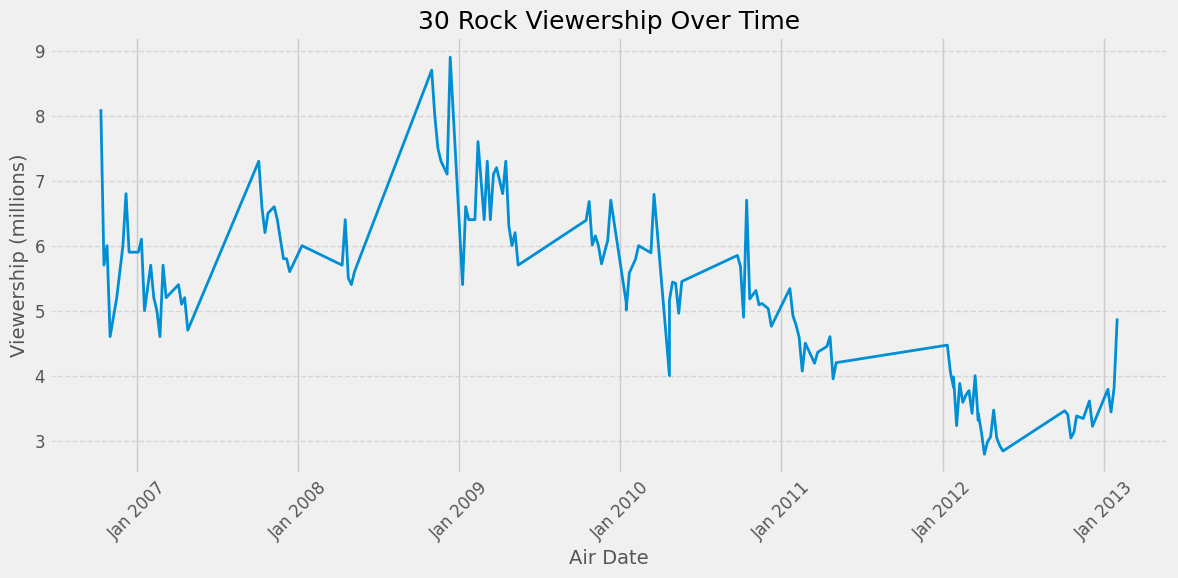

The next series of plots will show the viewership of 30 Rock over time. The initial plot is simple, but it has some issues as will soon be obvious. Unlike the ratings plot, which was a scatter plot, the gaps in time between air dates becomes a problem when visualized. There is nothing on the plot to indicate that there were no new episodes being aired at that time. This may cause some confusion for the person reading the plot. Since the purpose of visualizations is to bring clarity to the data, having the plot this way is not ideal. The issue will be addressed in the second iteration. Let’s start with the simple plot.
Again using the ‘fivethirtyeight’ styling a slimple line plot is created. The x-axis will be the air dates and the y-axis will be viewers in millons. Listed below are some additions to make the plot more readable.
- The viewership is scaled by dividing by
1e6 - The x-axis dates are formatted using the
matplotlib.mdateslibrary - The major xticks are located using the
matplotlib.mdateslibrary
plt.style.use('fivethirtyeight')
# Create a figure and axis
fig, ax = plt.subplots(figsize=(12, 6))
# Plot the viewership data
ax.plot(df['original_air_date'], df['us_viewers'] / 1e6, linewidth=2)
# Set the title and labels
ax.set_title('30 Rock Viewership Over Time', fontsize=18)
ax.set_xlabel('Air Date', fontsize=14)
ax.set_ylabel('Viewership (millions)', fontsize=14)
# Format the x-axis tick labels
ax.xaxis.set_major_formatter(mdates.DateFormatter('%b %Y'))
ax.xaxis.set_major_locator(mdates.YearLocator())
plt.xticks(rotation=45, fontsize=12)
# Format the y-axis tick labels
plt.yticks(fontsize=12)
# Add grid lines
ax.grid(axis='y', linestyle='--', alpha=0.7)
# Adjust the layout and display the plot
plt.tight_layout()

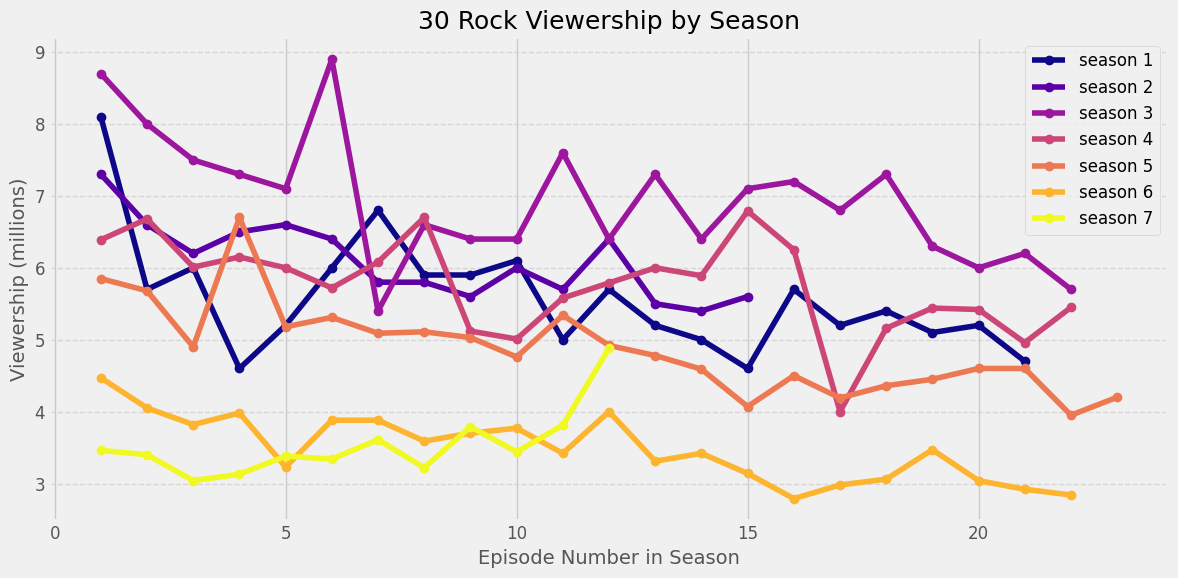

Now for some changes that will make the plot easier to understand. To address the disjointed look of the above plot, instead of the original air date, the x-axis will be the episode number. Since many of episode number are the same, the plot will have a separate line for each season. This will also require each line to have their own color.
Below is the code for the plot. The key difference between this plot and the one above is the for loop that plots each season on graph. First we get the unique values of the season column of the data frame. This will determine how many plots are created and their corrisponding colors. The ‘plasma’ color scheme is used by creating a varable colors by using the matplotlib.colormaps and indicating how many colors with the length of the seasons. A for loop is used with enumerate(seasons), so that there is access to the index for the colors and the value for the season. Inside the for loop the following occurs:
- Filter season data from data frame
- assign a color to variable
- create a plot with the episode number and the viewership, creating markers, and assigning a label for the legend
Finally, there is setting of all the labels, adding some grid style, and legend. With that this littel data analysis is finished.
plt.style.use('fivethirtyeight')
fig, ax = plt.subplots(figsize=(12,6))
seasons = df['season'].unique()
colors = plt.colormaps['plasma'].resampled(len(seasons))
for i, season in enumerate(seasons):
season_data = df[df['season'] == season]
color = colors(i)
ax.plot(season_data['episode_num'], season_data['us_viewers'] / 1e6, marker='o', label=f'season {season}', color=color)
# Set the title and labels
ax.set_title('30 Rock Viewership by Season', fontsize=18)
ax.set_xlabel('Episode Number in Season', fontsize=14)
ax.set_ylabel('Viewership (millions)', fontsize=14)
# Format the x-axis tick labels
plt.xticks(fontsize=12)
# Format the y-axis tick labels
plt.yticks(fontsize=12)
# Add grid lines
ax.grid(axis='y', linestyle='--', alpha=0.7)
# Add a legend
ax.legend(fontsize=12)
# Adjust the layout and display the plot
plt.tight_layout()
